Digital Temp. Sensor

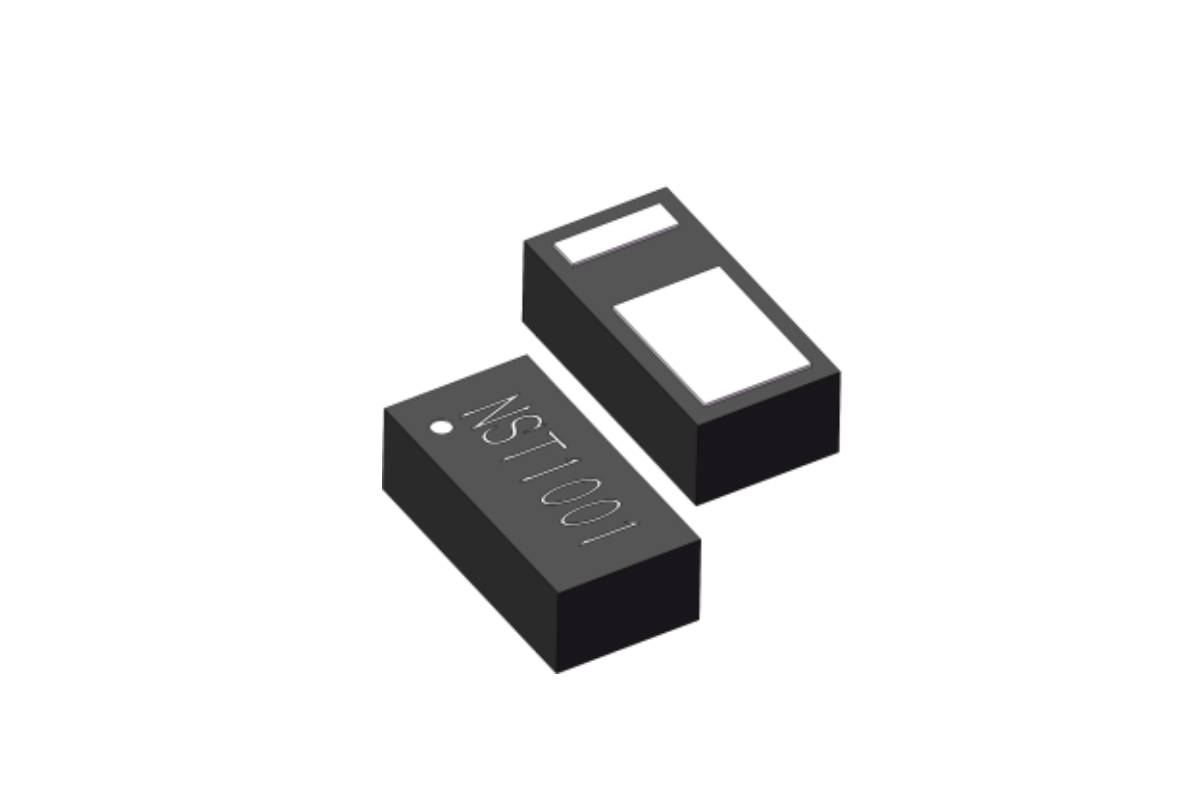

NST1001 is a high-precision dual-pin digital output temperature sensor, which belongs to Shenzhen Kemin Precision Temperature Product Series. NST1001's unique pulse counting digital output and high-precision characteristics in a wide temperature range can be directly connected to the GPIO of the MCU to ensure measurement accuracy while reducing MCU overhead and cost.

Product details

Application:

·Digital output temperature probe

·Industrial Internet of Things

·White goods
·Cold chain logistics
·Battery management


Characteristic:

·Wide temperature operating range – 50 ° C to 150 ° C
·High resolution, up to 0.0625 ℃
·High accuracy in the whole temperature range
-20 ℃~85 ℃: 0.5 ℃ (maximum)
-50 ℃~- 20 ℃: 0.75 ℃ (maximum)
85 ℃~150 ℃: 0.75 ℃ (maximum)
·Pulse digital output, without AD conversion interface
·Single temperature conversion time 50ms
·During conversion, the working current is only 30uA, with zero standby power consumption
·Wide power supply range, 1.65V to 5.5V
·It can directly replace the traditional NTC thermistor


Packaging form:

1. TO-92s (4mm x 3mm)


2. DFN2L(1.6mm x 0.8mm)
