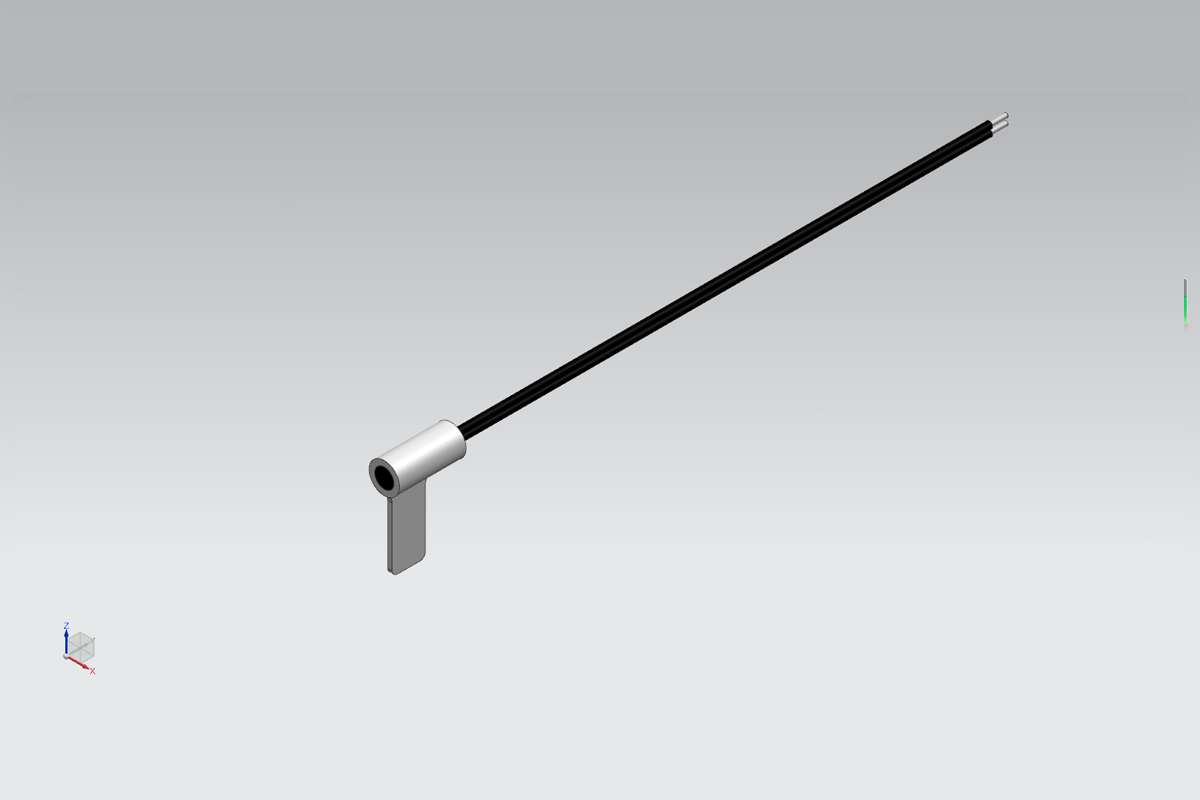

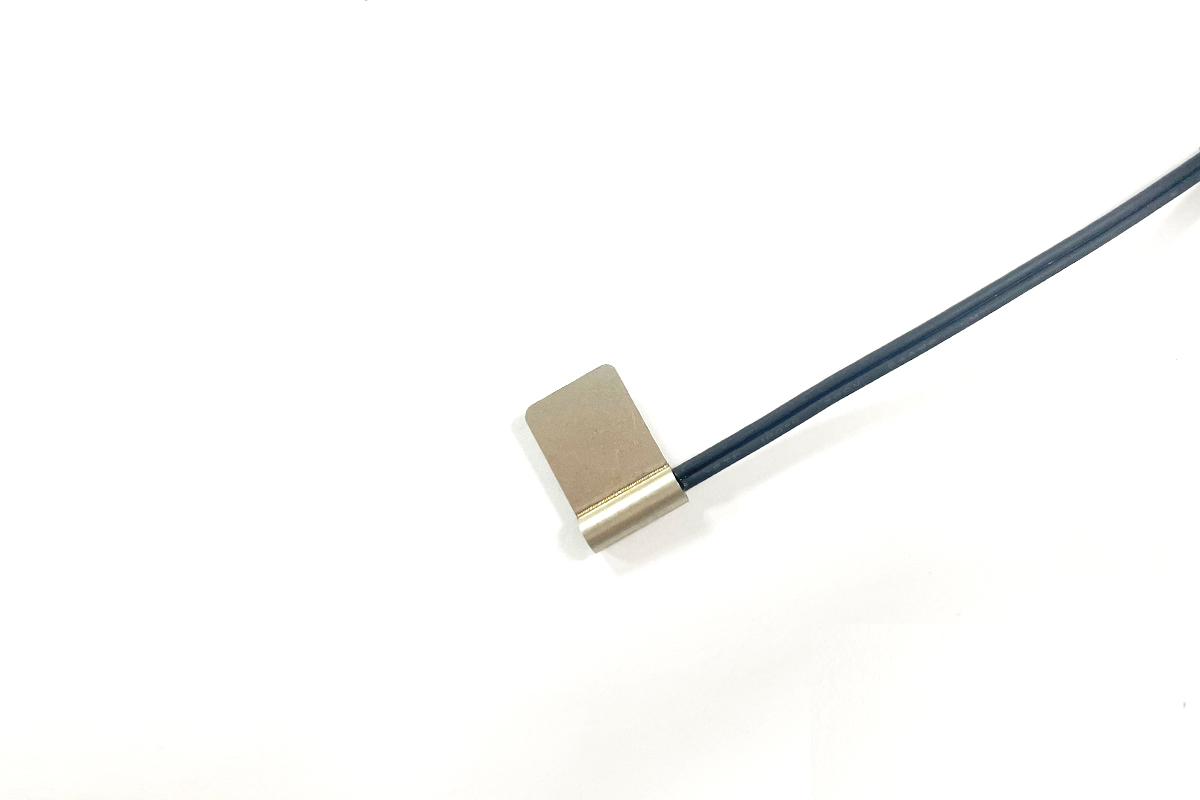

Energy Storage Battery Temp. Control Sensor

The temperature control sensor of the energy storage battery adopts a lead type sensing element made of semiconductor material NTC thermistor. This sensor is packaged in pure nickel and is made of UL and environmentally certified wire. It has high pressure resistance, high stability, and superior weather resistance, moisture resistance, and corrosion resistance, making it one of the Kemin vehicle grade products.

Product details

Application:

Battery, battery pack
Power supply and control board
Energy storage battery

Accessories (customer customized requirements):

Connector
Others

Specification parameters:

Sensor series

CWF4 Series

Operating temperature range

-40 ℃ to 125 ℃

Type of temperature sensing element

MF51 NTC

Resistance specifications

10KF3435 (R25 ℃=10K Ω ± 1%, B25/85=3435K ± 1%)

Wire specifications

UL4413, 24 #, black

Shell material

Pure nickel

Package size

φ 4.5 * 18.5 * 12.0 * 0.3T

Dielectric Strength

3000VAC, 60S, 5mA

insulation resistance

1000VDC,≥ 100M Ω

Thermal time constant

≤ 10s (in a constant temperature oil bath)

Dissipation coefficient

≥ 0.8mW/℃ (25 ℃, in still air)

Rated power

7mW (25 ℃, in still air)


Customized services:

The above accessories
Shell size, shape, material
Line type and length
The resistance, B value, and accuracy of the. NTC thermistor can be customized

Reference drawings:
