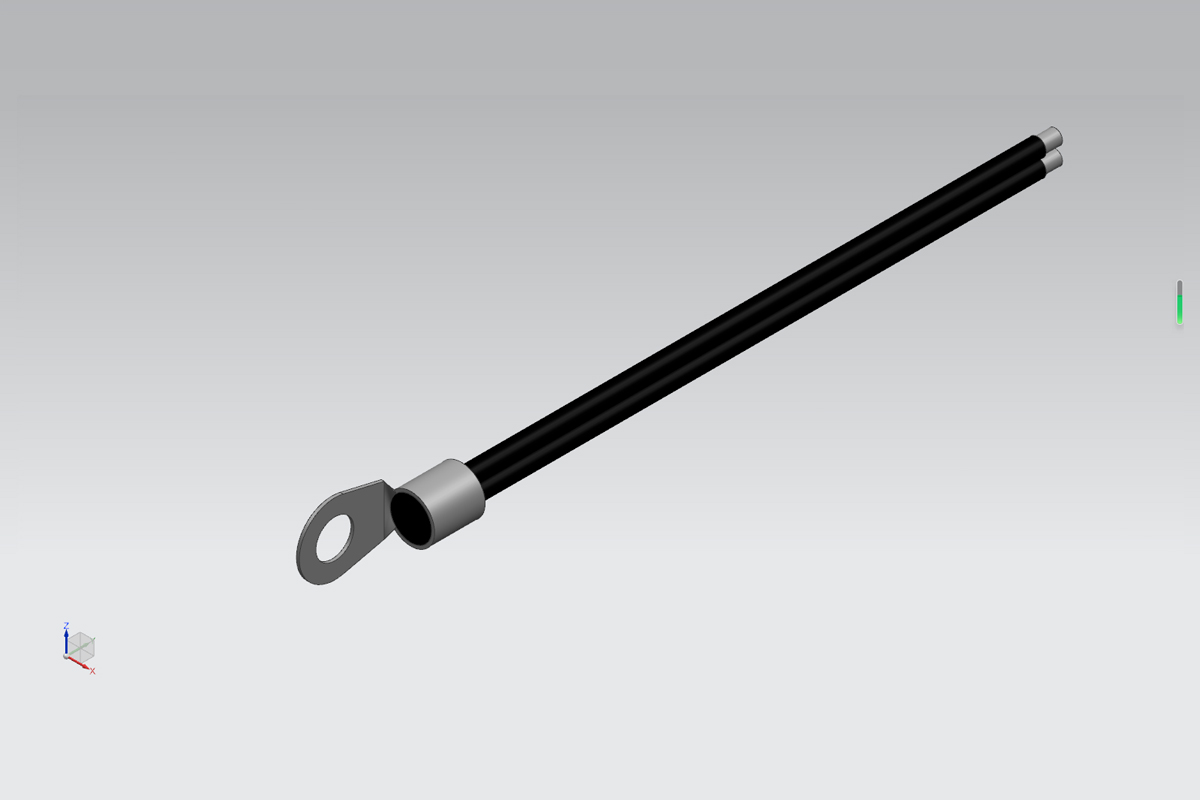

Ring-lug Temp. Sensor for Energy Storage Battery

The temperature sensor of the new energy vehicle energy storage battery is a lead type sensing element made of semiconductor material NTC thermistor. This sensor is packaged in a metal shell and has characteristics such as high pressure resistance, high stability, weather resistance, moisture-proof and anti-corrosion. It is one of the core products of Kemin Vehicle's standard level.

Product details

Application:

Battery, battery pack
Power supply and control board
Energy storage battery

Accessories (customer customized requirements):

Connector
Others

Specification parameters:

Sensor series

CWF4 Series

Operating temperature range

-40 ℃to125 ℃

Type of temperature sensing element

Kemin MF51 Series car grade NTC

Resistance specifications

10KF3435 (R25℃=10K Ω± 1%, B25/85=3435K ± 1%)

headPackaging form

Metal shell packaging type

Shell material

Copper nickel plating

Head Package Size

φ 4.2 * 25.65mm

Dielectric Strength

4000VAC, 3S, 0.5mA

Thermal time constant

15s(In a constant temperature oil bath)

Dissipation coefficient

2.5mW/℃ (25 ℃,In still air)


Customized services:

The above accessories
Shell size, shape, material
Line type and length
The resistance, B value, and accuracy of the. NTC thermistor can be customized

Reference drawings:
